If your garage is attached to your home, garage wall insulation is not just a comfort upgrade. It can affect how the home performs under the National Construction Code, especially where the garage wall, ceiling or floor sits beside a habitable room.
Under the NCC, a private garage is usually a Class 10a building, which means it is non-habitable. But once that garage is attached to a Class 1 home, it can affect the home’s thermal performance. In most jurisdictions, the code says the attached garage must either be built so its external fabric achieves the required thermal performance for the dwelling, or it must be separated from the dwelling with construction that achieves that required thermal performance. In NSW, this specific NCC clause does not apply the same way, and BASIX is the main residential sustainability pathway for new homes and many larger alterations and additions.
That point matters because many online articles reduce the issue to one question: “Do I need insulation in the wall between the garage and the house?” or simply "Do garages need insulation?". Sometimes yes, but not always as a stand-alone answer. In some designs, the shared wall and adjoining floor or ceiling form the thermal boundary. In others, the garage’s own external walls and floor are brought into the thermal envelope instead.
R2.0-R2.8
Typical wall R-value requirement
45%
Heat loss through uninsulated garage walls
$3,000+
Average rectification cost in 2026
Understanding NCC Classifications for Garages
The NCC treats garages differently based on their relationship to the main dwelling. An attached garage sharing a wall with habitable rooms creates a thermal envelope breach that must be addressed.
A private garage is normally Class 10a, which means it is not a habitable part of the home. That is why a detached garage is usually treated very differently from a bedroom, study or living room. But the moment a garage is attached, it becomes part of the thermal discussion because it touches the dwelling and can transfer heat, cold air and fumes.
- Class 10a Structure
A non-habitable building including private garages, carports, and sheds. These have reduced requirements compared to habitable spaces.
- Thermal Envelope
The boundary separating conditioned (heated or cooled) space from unconditioned space or the outside environment.
- R-Value
A measure of thermal resistance. Higher R-values indicate better insulating properties.
The key distinction depends on how your garage connects to the dwelling:
| Garage type | Typical classification | What it means for insulation |
|---|---|---|
| Detached garage used for parking | Class 10a | Usually outside the home’s thermal envelope |
| Attached garage with shared wall | Class 10a attached to Class 1 home | The garage must not reduce the home’s thermal performance |
| Garage with room above | Class 10a below habitable space | Ceiling or floor insulation usually becomes a key issue |
| Garage converted to living space | May need Class 1 assessment | New insulation, ventilation, ceiling height and approval checks may apply |
That last row is where many owners get caught out. A garage used as a room has different requirements from a garage used to park cars and store tools. Habitable rooms need higher minimum ceiling heights, and councils commonly require approval or a building permit for garage-to-room conversions.
Building a home with an attached garage?
Book an independent stage inspection to catch insulation, sealing and compliance issues before plaster goes on and defects get harder to fix.
Inspections
Do Garages Need Insulation Under the NCC?
Attached garages often need insulation or thermal separation because they can affect the heating and cooling performance of nearby rooms.
The NCC housing energy efficiency requirements sit in NCC Volume Two and the ABCB Housing Provisions Standard. Also, the NCC thermal performance requirement looks at heating load, cooling load and total thermal energy load for habitable rooms and conditioned spaces.
The garage should not become the weak point that lets heat, cold air or drafts affect the living area.
| Question | Practical answer |
|---|---|
| Does a garage need insulation if it is detached? | Usually not for energy compliance if it remains a non-habitable Class 10a garage |
| Do you need to insulate garage walls if the garage is attached? | Often yes, unless the garage’s external walls and roof are treated as part of the thermal envelope |
| Does the wall between garage and house need insulation? | Usually yes if that wall forms the thermal boundary |
| Does garage ceiling insulation matter? | Yes if there is a room above, shared ceiling space or heat transfer into the home |
Does Insulating a Garage Make a Difference?
Yes, especially when the garage is attached to the house.
Heating and cooling account for about 40% of household energy use in the average Australian home. Insulation works by slowing heat flow, which helps keep a home warmer in winter and cooler in summer. Your Home also notes that in cool conditions, ceilings and roof spaces account for 25 to 35% of winter heat loss, walls account for 15 to 25%, and floors account for 10 to 20%. Air leaks can add another 15 to 25% of winter heat loss.
That is why attached garages matter even if you never heat or cool the garage itself. A garage can act like a buffer zone, but it can also become a weak spot. The biggest trouble areas are often the large garage door, the ceiling or roof over the garage, the internal door linking the garage to the home, perimeter gaps, and any wall or floor that forms part of the home’s thermal boundary. Australian garage door manufacturers also lean heavily on door insulation and weather seals because the garage door is such a large moving panel and a common source of heat gain, heat loss and drafts.
There is also an indoor air quality angle. Your Home recommends that if a garage is attached, the linking door should be well fitted and securely sealed against leaks, because vehicle exhaust contains very fine particles and toxic gases.
What Insulation Is Best for Garage Walls?
The best insulation for garage walls depends on the wall system and the inspection goal.
Bulk insulation uses pockets of trapped air to resist conducted and convected heat, while reflective insulation mainly resists radiant heat flow and needs an air layer beside the shiny surface. All insulation materials sold in Australia must meet AS/NZS 4859, Materials for the thermal insulation of buildings.
| Insulation type | Best use in attached garages | Notes |
|---|---|---|
| Glass wool batts | Common wall insulation for garage cavities | Cost-effective and widely used |
| Polyester batts | Wall insulation where low-irritant handling is preferred | Good option for renovations |
| Rockwool batts | Garage walls needing acoustic and fire-performance benefits | Useful near noisy or higher-risk areas |
| Rigid foam board | Continuous insulation to reduce thermal bridging | Often used where space is limited |

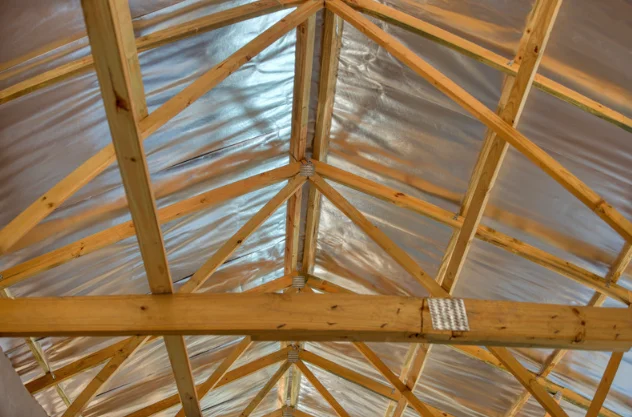

| Reflective sarking or foil | Radiant heat control and wall or roof wrap systems | Needs correct air gap and installation |
The right product is not enough on its own. YourHome warns that gaps, compression, dust on reflective insulation and missing air gaps can reduce total R value.
Garage Ceiling Insulation and Garage Roof Insulation
Garage ceiling insulation can be just as important as wall insulation, especially where there is a bedroom, living room or study above the garage.
Roof and ceiling insulation can save up to 45% or more on heating and cooling costs. In attached garages, ceiling insulation for garage areas matters when heat moves through the ceiling into the house or when the garage roof space connects with the home’s roof space. Garage ceiling insulation can also work together with heating, cooling and ducting details, so owners of new homes may also want to check the guide on air conditioning installation in new builds.
| Garage layout | Insulation focus |
|---|---|
| Room above garage | Garage ceiling insulation or floor insulation above garage |
| Shared roof space with house | Ceiling line, roof space barriers and air sealing |
| Exposed garage roof | Garage roof insulation and reflective membrane details |
| Raked garage ceiling | Higher-detail insulation due to limited cavity space |
Is Insulation Mandatory in Australia?
For new homes and approved residential building work, yes, minimum thermal performance standards apply. For attached garages, the exact pathway depends on the state or territory, the design, the climate zone and the assessment method used. The NCC sets the national technical framework, while NSW uses BASIX as the main sustainability assessment tool for new homes and many alterations and additions. BASIX says its thermal performance standards are there to help homes stay cool in summer and warm in winter without using large amounts of energy.
For an existing garage that stays a garage, there is not a simple Australia-wide rule that every owner must retrofit insulation tomorrow. The bigger compliance triggers are new construction, major additions, and change-of-use work such as converting a garage into a habitable room. That is where approvals, new thermal targets and habitable-room requirements usually come into play.
What R-value Should I Insulate my Garage With?
There is no single Australia-wide garage R-value.
That is one of the biggest mistakes in the current article. The NCC does not work like a one-line “all attached garage walls must be R2.0” rule. Your Home explains that NCC minimum insulation levels depend on your location and other building features, and that total R-value is the best guide because it reflects the whole assembly, not just one product in isolation. BASIX in NSW also varies standards by location and building type, and aligns newer thermal standards with higher star-rating expectations.
A better way to answer the question is this:
-
If the shared wall, ceiling or floor is acting as the thermal boundary, that construction needs to achieve the home’s required thermal performance.
-
If the garage exterior is being treated as part of the home envelope, the garage’s outside walls, and sometimes the garage floor, need to do that job instead.
-
The right specification depends on climate zone, wall type, roof type, glazing, assessment path and state variations.
Climate Zones Australia: Why Location Changes Garage Insulation
Australia has eight main climate zones, from tropical zones in the north to cold zones in the south. The best type and R value of insulation depends on climate and construction type.
This is why climate zone 5 insulation requirements and climate zone 6 insulation requirements can produce different garage wall insulation outcomes.
| Climate zone keyword | Search intent to answer in the blog | Content angle |
|---|---|---|
| climate zones Australia | User wants to know where their home fits | Explain the 8 climate zones |
| climate zone 5 insulation requirements | Sydney, Perth and Adelaide related searches | Discuss warmer temperate design needs |
| climate zone 6 insulation requirements | Melbourne and Canberra related searches | Discuss higher heating and cooling performance needs |
| garage insulation R value | User wants a product number | Explain that total R value and design pathway matter |
The ABCB Handbook gives an example of a climate zone 5 house with an attached Class 10a garage and an example of a Melbourne climate zone 6 house with an attached Class 10a garage.
In the climate zone 5 example, the handbook shows a wall insulation example of R2.0 for a masonry veneer wall with the stated solar absorptance, overhang and wall height assumptions.
In the climate zone 6 example, the handbook shows a wall insulation example of R2.5 for a masonry veneer wall with the stated design assumptions.
Climate Zone Requirements for Garage Insulation
Australia is divided into eight climate zones under the NCC, each with different insulation requirements. Your location determines minimum R-values for walls, ceilings, and floors.
| Climate Zone | Regions | Minimum Wall R-Value | External Wrap Required |
|---|---|---|---|
| Zone 1 | Far North QLD | R1.4 | Condensation control only |
| Zone 2 | Northern coastal areas | R1.4 | Condensation control only |
| Zone 3 | Inland QLD, northern NSW | R1.4 | Recommended |
| Zone 4 | Central NSW, coastal SA | R2.0 | Yes |
| Zone 5 | Sydney, Perth, Adelaide | R2.0 | Yes |
| Zone 6 | Melbourne, Canberra | R2.8 | Yes |
| Zone 7 | Tasmania, alpine regions | R2.8 | Yes |
| Zone 8 | Alpine areas | R3.0+ | Yes |
NCC 2025 Changes
The NCC 2025 builds on the energy efficiency improvements introduced in NCC 2022 and introduces additional condensation management requirements in climate zones 6 to 8. Properties built to pre-2022 standards may not meet current requirements if you are renovating or extending. Always check the current NCC edition when planning work in 2026.

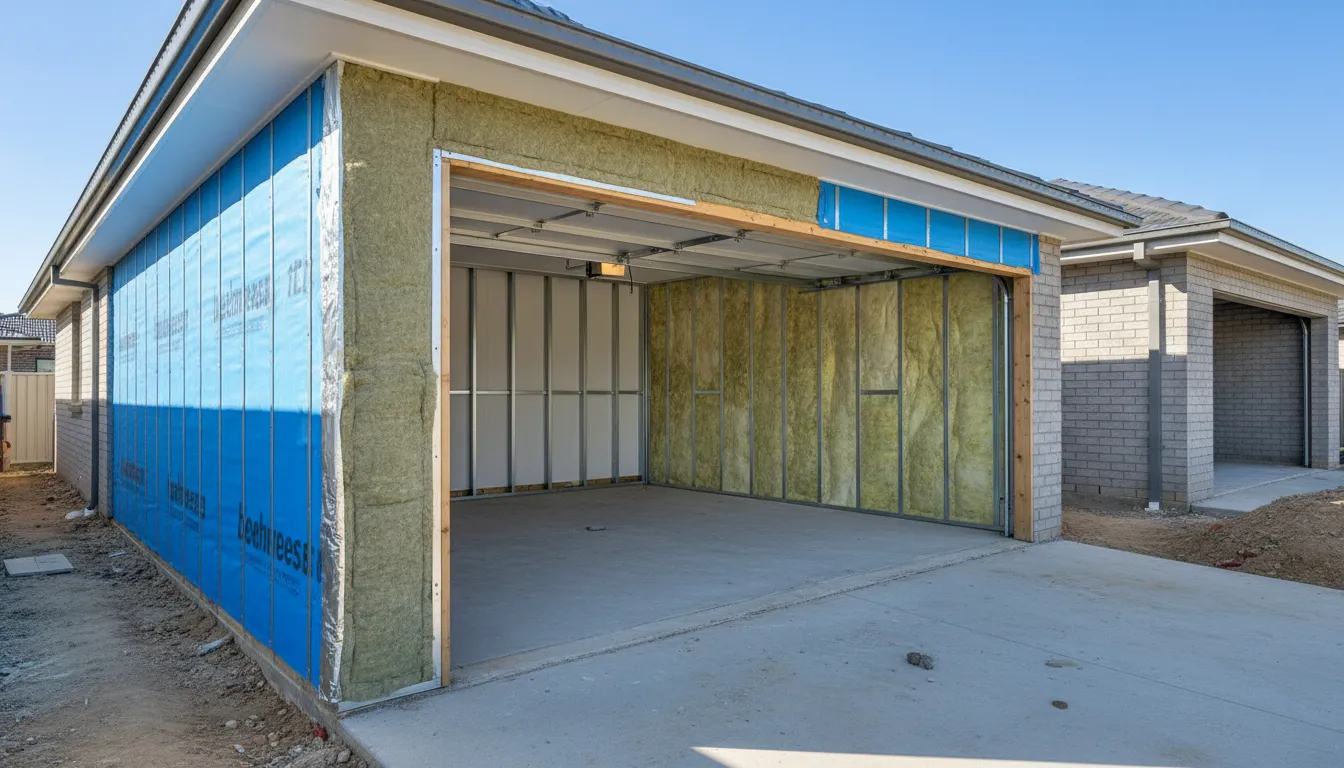

External Wall Wrap, Sarking and Internal Garage Wall Insulation
External wall wrap and internal garage wall insulation do different jobs.
A pliable building membrane is treated in the NCC as a water barrier classified by AS 4200.1. NCC referenced documents include AS 4200.1 for pliable building membranes and underlays, and AS 4200.2 for installation requirements.
Internal insulation between the garage and living space deals with heat flow through the shared wall. External wrap helps with wall system performance, weather resistance and moisture control when it forms part of the specified wall system.
| Area | What to check |
|---|---|
| Garage external wall | Correct membrane, cladding cavity and wall insulation detail |
| Wall between garage and house | Bulk insulation, air sealing and service penetrations |
| Garage ceiling | Batts, roof space separation and access disturbance |
| Garage door | Weather seals and panel insulation where comfort is a goal |
| Internal garage access door | Sealing around frame and threshold |
External Wall Wrapping Requirements
External wall wrapping serves two purposes: thermal performance and condensation management. Even where insulation R-values are met, wrapping may still be required under NCC Part 10.8 (condensation management).
For attached garages, external wrap requirements apply to:
- External walls of the garage exposed to weather
- Walls forming part of the building's thermal envelope
- Any wall where condensation risk exists based on climate zone assessment
External wrap is generally not required for:
- Internal walls between garage and unconditioned spaces
- Walls in climate zones 1 to 2 with adequate natural ventilation
The type of wrap matters. Reflective sarking with appropriate permeability ratings must be installed according to manufacturer specifications. We often find wrap installed incorrectly during new construction stage inspections, with gaps at junctions or incorrect tape sealing.
Not sure if the garage insulation was installed properly?
Use our construction stage inspections guide to understand when insulation, wall wrap, doors and junctions should be checked during the build.
Stage Guide
Do You Need External Wrap, Internal Wall Insulation, or Both?
Sometimes one, sometimes the other, sometimes both.
If a pliable building membrane is installed in an external wall, the NCC says it must comply with AS 4200.1, be installed to AS 4200.2, and sit on the exterior side of the primary insulation layer. In climate zones 4 to 8, membranes on the outside of the primary insulation layer also need minimum vapour permeance. Where there is no membrane in many wall types, the primary water control layer must still be separated from water-sensitive materials by a drained cavity.
That means “wrap” is not a magic yes-or-no box. The correct detail depends on the wall system and condensation risk, not just on the word “garage”.
Internal wall insulation is also not the whole story. If the shared wall forms the thermal boundary, then yes, that wall matters. But so do the junctions, penetrations, door frames, ceiling line and any floor or slab edge that sits on the same boundary. The NCC says insulation must butt or overlap adjoining insulation and form a continuous barrier. Your Home adds that corners, wall junctions, and door and window frames are common heat-leak points.

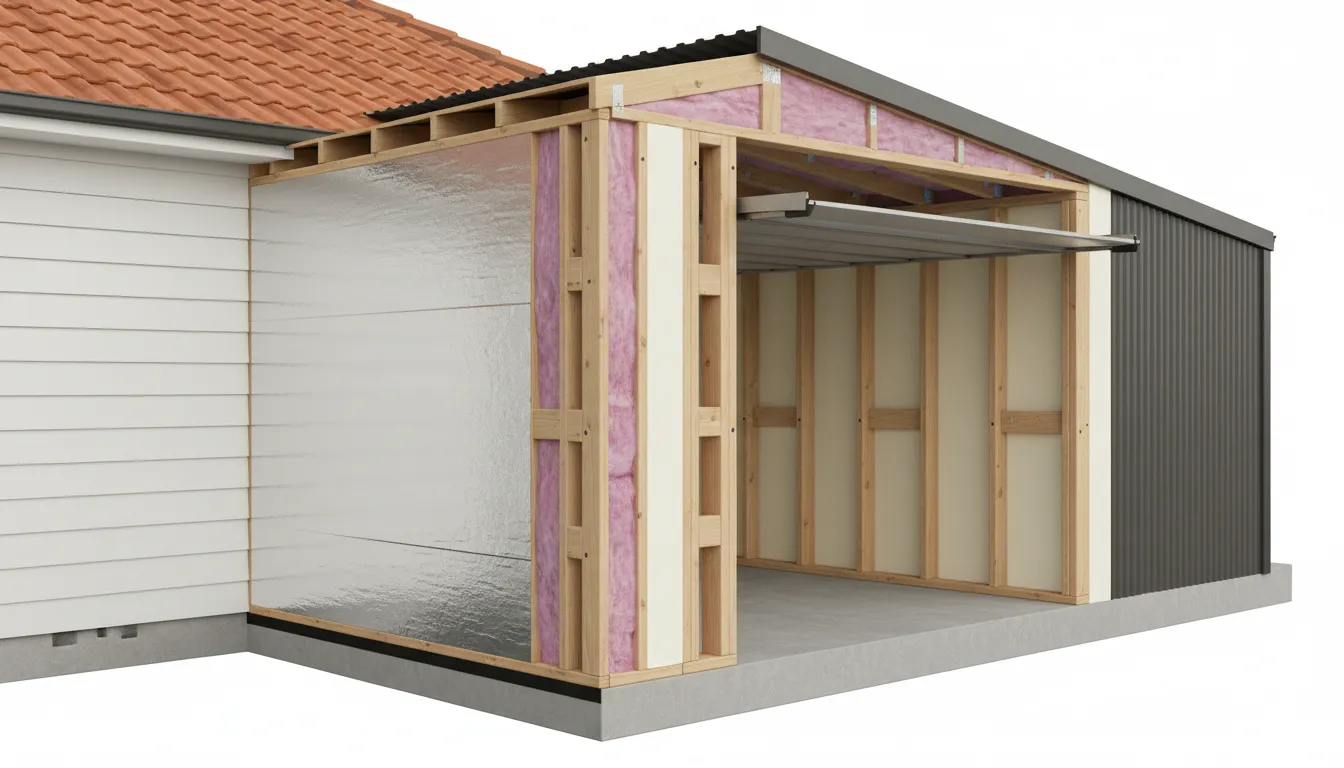

Internal Wall Insulation Between Garage and House
The wall separating your attached garage from habitable rooms requires insulation regardless of climate zone. This is not just about thermal comfort. It also addresses:
- Fire separation under NCC Part 3.7.1
- Sound transmission for attached garages
- Fume and odour isolation from vehicles and stored chemicals
Fire Rating Requirements
The wall between an attached garage and habitable space must achieve a minimum 60/60/60 Fire Resistance Level (FRL) in most states. This typically requires fire-rated plasterboard on the garage side, which affects insulation installation methods. Always confirm the FRL requirement with your building surveyor before selecting insulation products.
Standard insulation options for the shared wall include:
| Insulation Type | R-Value Range | Cost per m² (2026) | Installation Notes |
|---|---|---|---|
| Glass wool batts | R2.0 to R2.7 | $18 to $30 | Most common, easy to install |
| Polyester batts | R2.0 to R2.5 | $25 to $40 | Non-irritant, moisture resistant |
| Rockwool batts | R2.5 to R3.0 | $30 to $45 | Best fire and acoustic properties |
| Spray foam | R2.0 to R3.5 | $45 to $70 | Excellent air sealing, professional install only |
If you suspect insulation defects in your property, a defect investigation report can identify compliance gaps and recommend remediation.
Where Do Garages Lose the Most Heat?
In attached garages, the main weak points are usually:
- The garage door, because it is large, thin and often poorly sealed
- The ceiling or roof over the garage
- The internal door between the garage and the home
- Gaps and penetrations around edges, services and frames
- Any shared wall or floor that forms part of the home’s thermal boundary
This is why insulating only one surface can disappoint owners. A nicely insulated shared wall will not fix a hot garage if the roof space above is bare, the garage door is uninsulated and the perimeter is leaking air.
Do Garage Walls Need to Be Fire Rated?
Sometimes, but this needs project-specific checking.
The NCC includes fire safety provisions for Class 1 and Class 10 buildings, and Class 10a buildings must not significantly increase fire spread risk between certain buildings.
For a standard attached garage beside a Class 1 dwelling, do not assume a single fire rating applies in every state and every layout. Boundary setbacks, dwelling-above-garage layouts, wall type, penetrations and local approval conditions can change the answer.
Common Garage Insulation Mistakes We See in Inspections
The most common problem is assuming the garage does not matter because it is “only a garage”. During a new construction stage inspection, these issues can often be checked before wall linings, ceiling linings or insulation defects are hidden.
Other common issues include:
| Defect | Why it matters |
|---|---|
| Missing batts in the shared wall | Creates a weak point beside habitable rooms |
| Compressed insulation | Reduces insulation performance |
| Gaps around pipes and cables | Allows air leakage and heat transfer |
| Poor ceiling coverage | Affects rooms above or nearby roof spaces |
| Incorrect reflective foil installation | Reflective insulation needs the right air gap |
| No check before plasterboard | Defects become harder and more expensive to fix |
Common Compliance Issues We Find
Through thousands of inspections across Australian properties, certain garage insulation defects appear repeatedly:
Missing or Compressed Batts
Insulation batts shoved into cavities without proper fitting lose up to 50% of their rated R-value. Each batt must be cut to size and fit snugly without compression.
Gaps at Penetrations
Electrical boxes, pipes, and ducts through the shared wall create thermal bridges. These require sealing and insulation packing around penetrations.
Incorrect Wrap Installation
External wrap installed with the reflective side facing the wrong direction, with unsealed joints, or damaged during construction. Reflective sarking must face the air gap with a minimum 20mm clearance.
No Insulation to Ceiling Space
Where the garage shares ceiling space with the house, thermal separation at the ceiling level is often forgotten. This creates significant heat transfer and is one of the most expensive issues to rectify after completion.
Do You Need a Permit to Insulate a Garage?
Small insulation upgrades to an existing garage may be treated differently from structural work, recladding, fire-rated wall changes or a garage conversion.
In Victoria, a building permit sets out whether an occupancy permit or certificate of final inspection is required when the work is complete.
In Queensland, building certifiers assess and approve plans for new, altered and existing building work, inspect mandatory stages and give final approval for occupation.
If the garage is being converted into a bedroom, study, rumpus room or other habitable space, treat it as an approval issue before work starts.
Pros and Cons of Proper Garage Insulation
Pros
- Compliant insulation reduces energy bills by 15 to 25%
- Proper installation improves acoustic separation from garage noise
- Meets fire safety requirements when combined with rated plasterboard
- Prevents condensation and mould issues in wall cavities
Cons
- Retrofitting insulation costs significantly more than installing during construction
- Accessing existing wall cavities may require partial wall removal
- Non-compliance can affect insurance claims and resale value
NSW BASIX and Garage Insulation
NSW is different because BASIX is a key sustainability pathway for new homes and many renovations.
BASIX sets standards for water use, energy use and thermal performance in NSW residential development. BASIX also sets thermal performance requirements to help homes stay cool in summer and warm in winter without using a large amount of energy.
For NSW projects, check the BASIX certificate, NatHERS report and construction drawings before deciding whether the garage wall, ceiling or garage exterior is part of the required thermal boundary.
Getting the Most Value from Your Home and Building Investment
Garage wall insulation is not only about making the garage more comfortable. For attached garages, it can affect the home’s energy performance, inspection outcome and long-term comfort.
Before plasterboard goes on, check the wall between the garage and house, garage ceiling insulation, garage roof insulation, external wrap, service penetrations and the internal access door.
Owner Inspections can assess garage insulation, thermal boundary defects, construction stage issues and visible compliance risks before they become expensive rectification work.
Frequently Asked Questions
Do garages need insulation?
Does a garage need insulation if it shares a wall with the house?
Do you need to insulate garage walls?
What insulation is best for garage walls?
What R-value insulation for garage ceiling?
Does garage door insulation count towards NCC wall insulation requirements?
Do garage walls need to be fire rated?
Do I need a permit to insulate my garage?
Key Takeaways
- Attached garages sharing walls with habitable rooms require insulation under the NCC regardless of climate zone
- External wall wrap is mandatory in climate zones 4 to 8 for condensation management and thermal performance
- Required R-values range from R1.4 in tropical areas to R3.0+ in alpine regions
- The garage to house wall must achieve 60/60/60 fire rating, affecting insulation installation methods
- Detached garages have minimal requirements unless converted to habitable use
- Non-compliance can cost $3,000 to $10,000 to rectify in 2026 and may affect insurance claims
- NCC 2025 tightened requirements further, so older properties may not meet current standards
- Professional inspection with thermal imaging is the most accurate way to assess compliance
Concerned About Garage Insulation Compliance?
Our licensed building inspectors can assess your garage insulation against current NCC requirements and identify any defects or compliance gaps.
Related Articles
The Importance of Sarking in Building Construction
Sarking provides essential protection beneath your roof, preventing moisture, dust, and radiant heat from penetrating your home. Learn why it should not be skipped.
How to Build a Resilient Home for Extreme Weather in Australia
Climate change is making extreme weather events more frequent and intense across Australia. This guide covers how resilient construction methods protect homes from bushfires, floods, storms, and other climate-driven hazards.
Can a Builder Refuse Private Inspectors During Construction? Your Rights by State
When a builder or developer refuses to allow your private inspector on site during construction stages, you have legal rights that vary by state. This guide explains the legislation protecting homeowners in NSW, VIC, QLD, SA, and ACT, plus practical strategies when builders push back.
